GLASS EXPOXY DIP SOCKETS: GEDS SERIES

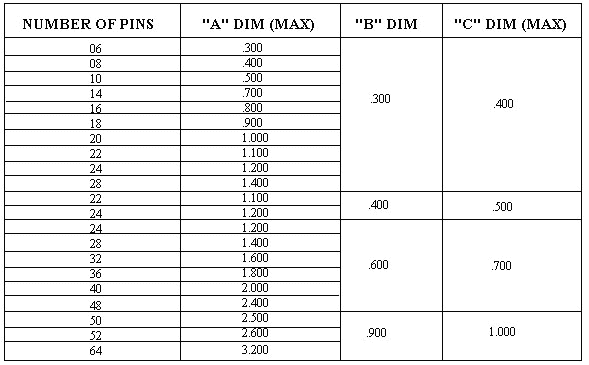

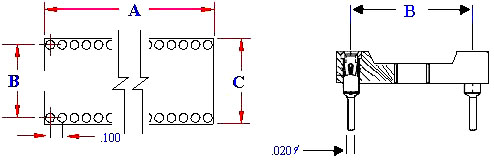

Dimension Table

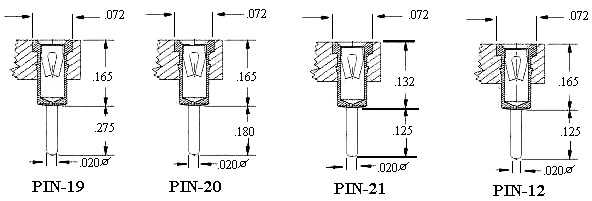

Pin Styles

NOTE: OTHER PIN OPTIONS AVAILABLE. SEE PIN STYLE PAGE
Specifications
Insulator Material: Glass Epoxy Laminate Thickness: .050 to .093"
Flammability Rating: UL94V-0 Operating Temperature: -75°F to +285°F
Shell Material: 360 1/2 hard Brass per QQ-B-626 Clip Material: Beryllium Copper per QQ-C-530
Shell Finish: Gold/Nickel per MIL-G-45204, Tin/Nickel per MIL-T-10727 and Nickel per QQ-N-290

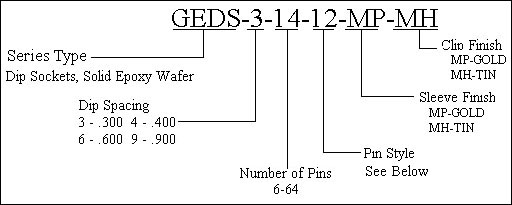

How to Order
