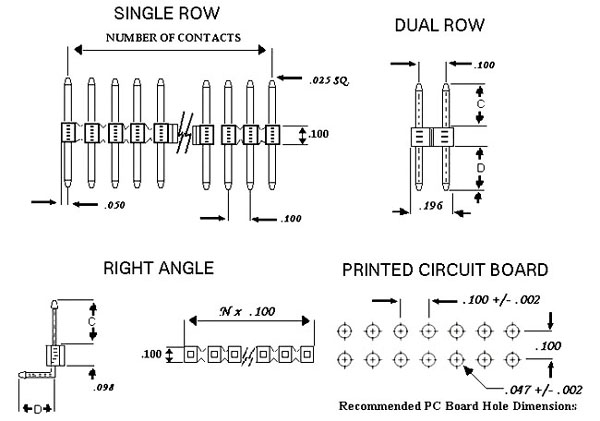

PIN HEADER FOR .025 SQ. POST PPH SERIES
Features
.025" Sq. Post on .100" Centers   Molded in Standoffs
Up to 40 Circuits Per Row    Available in Single, Dual or Three Rows
Specifications
Insulator Material: Glass Filled Polyester
Flammability Rating: UL94V-0
Shell Material: Machined Brass
Shell Plating: Gold/Nickel per MIL-G-45204 or Tin/Nickel per MIL-T-10727 and Nickel per QQ-N-290
Contact Material: Beryllium Copper
Contact Plating: Gold/Nickel per MIL-G-45204
Voltage Raging: 250 Vac RMS
Current Rating: 3 Amps Per Contact
Insulation Resistance: 5 Mega-ohms Min.
Contact Resistance: 10 Milli-ohms Max.
Operating Temperature: -55 degree to +125 degree C

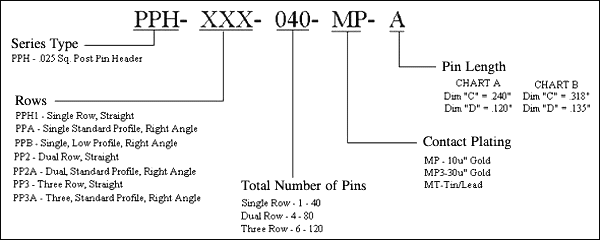

How to Order
